PVC-PUR Servomotor Cables
STANDARD USE
Oil resistant shielded servocables for power supply brushless motors for fixed laying UL-CSA DESINA approval.
Data sheet More infoTechnical details:

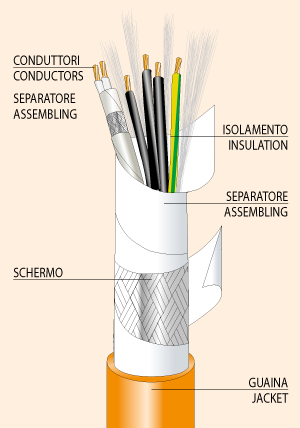

Conductors
Flexible stranded bare copper (Cu-ETP1),CEI 20-29 cl.5, VDE 0295 cl.5, EN 60228, IEC 60228 ref.
Insulation
Power supply: Polyvinylchloride (PVC) UL 1581Signal pairs (where required): Polyethylene (PE) UL 1581 ref.
Colour code:
Power supply: Black num. + Yellow/Green
or Black U/L1/C/L+, V/L2, W/L3/D/L-, Yellow/Green
Signal pairs (where required): Black, White
Overall Shield
Tinned copper braid.Optical coverage braid: ≥ 85%.
Signal Pair Shield
Tinned copper braid.Optical coverage: ≥ 80%
Assembling
Non woven tape.
Jacket
Low friction halogen free matt flame retardant Polyurethane, hydrolysis, microbial attack, abrasion, tear, oil resistant.Colour code:
Orange Ral 2003 DESINA (other colours on request)
Electrical Conductor Resistance
0,75 mm2: < 26,0 Ohm/Km1 mm2: < 19,5 Ohm/Km
1,5 mm2: < 13,3 Ohm/Km
2,5 mm2: < 7,98 Ohm/Km
4 mm2: < 4,95 Ohm/Km
6 mm2: < 3,30 Ohm/Km
10 mm2: < 1,91 Ohm/Km
Operating Voltage
Power supply: 1000 VSignal: 250 V
Test Voltage
Power supply: 4000 VSignal: 1500 V
Operating Temperature
-30°C + 80°C
Bending radius
10 times overall diameter of cable.
Flame retardant test
CEI 20-35/1-2, EN 60332-1-2, IEC 60332-1-2, UL cable flame test, FT1 test
UL-CSA Approval (E235078)
AWM STYLE 20234 80°C 1000 V – CSA I/II A/B 80°C 1000 V FT1| SISTEMA / SYSTEM | CODICE / CODE | FORMAZIONE / TYPE | Ø ESTERNO / OUTER Ø ±5% (mm) | PESO MEDIO / AVERAGE WEIGHT (kg/km) |
|---|---|---|---|---|
| SIEMENS | [3G1,5]ST | 8,5 | 107 | |
| [4G1,5]ST | 8,9 | 156 | ||
| [4G2,5]ST | 11,1 | 235 | ||
| [4G4]ST | 13,1 | 315 | ||
| [4G6]ST | 14,6 | 440 | ||
| [4G10]ST | 18,5 | 700 | ||
| [4G16]ST | 22,8 | 1040 | ||
| SIEMENS | [4G0,75+(2x0,5)ST]ST | |||
| [4G1,5+(2x1)ST]ST | 11,8 | 205 | ||
| [4G1,5+(2x1,5)ST]ST | 12,8 | 270 | ||
| [4G2,5+(2x1)ST]ST | 13,2 | 262 | ||
| [4G2,5+(2x1,5)ST]ST | 13,9 | 350 | ||
| [4G4+(2x1)ST]ST | 14,3 | 338 | ||
| [4G4+(2x1,5)ST]ST | 15,5 | 415 | ||
| [4G6+(2x1,5)ST]ST | 16,6 | 519 | ||
| [4G10+(2x1,5)ST]ST | 20,2 | 775 | ||
| [4G16+(2x1,5)ST]ST | 23,6 | 1130 | ||
| BOSCH/REXROTH | [4G0,75+2x(2x0,34)ST]ST | 9,6 | 140 | |
| [4G1+2x(2x0,75)ST]ST | 12,7 | 234 | ||
| [4G1,5+2x(2x0,75)ST]ST | 13,0 | 260 | ||
| [4G2,5+2x(2x0,75)ST]ST | 14,2 | 320 | ||
| [4G2,5+2x(2x1)ST]ST | 14,6 | 330 | ||
| [4G4+(2x1)ST+(2x1,5)ST]ST | 16,3 | 440 | ||
| [4G6+(2x1)ST+(2x1,5)ST]ST | 18,1 | 552 | ||
| [4G10+(2x1)ST+(2x1,5)ST]ST | 21,8 | 810 |
