PVC Servomotor Cables

STANDARD USE

Oil resistant shielded servocables for power supply brushless motors for fixed laying UL-CSA DESINA approval.

Data sheet
More info

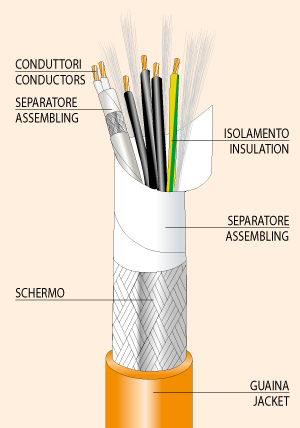

Technical details:

Conductors

Flexible stranded bare copper (Cu-ETP1),
CEI 20-29 cl.5, VDE 0295 cl.5, EN 60228, IEC 60228 ref.

Insulation

Power supply: Polyvinylchloride (PVC) UL 1581 ref.
Signal pairs (where required):
Polyethylene (PE) UL 1581 ref.
Colour code:
Power supply: Black num. + Yellow/Green
or Black U/L1/C/L+; V/L2; W/L3/D/L-, Yellow/Green
Signal pairs (where required): Black, White

Shield on every single pair

Tinned copper braid.
Optical coverage: ≥ 80%.

Overall Shield

Tinned copper braid.
Optical coverage braid: ≥ 85%.

Jacket

Flame retardant and oil resistant
Polyvinylchloride UL 1581 ref.
Colour code:
Orange Ral 2003 DESINA (other colours on request)

Electrical Conductor Resistance

0,75 mm2: < 26,0 Ohm/Km
1 mm2: < 19,5 Ohm/Km
1,5 mm2: < 13,3 Ohm/Km
2,5 mm2: < 7,98 Ohm/Km
4 mm2: < 4,95 Ohm/Km
6 mm2: < 3,30 Ohm/Km
10 mm2: < 1,91 Ohm/Km

Operating Voltage

Power supply: 1000 V
Signal: 250 V

Test Voltage

Power supply: 4000 V
Signal: 1500 V

Operating Temperature

-30°C + 80°C

Bending radius

10 times overall diameter of cable.

Flame retardant test

CEI 20-35/1-2, EN 60332-1-2, IEC 60332-1-2 UL 1581 cable flame test, FT1 test.

UL-CSA Approval (E235078)

Style 2570 80°C 1000 V – CSA I/II A/B 80°C 1000 V FT1

Optional Jacket

Matt flame retardant Polyurethane blend, oil resistant.

Polyurethane blend jacket UL-CSA Approval (E235078)

AWM STYLE 20234 o 21223 – CSA I/II A/B 80°C 1000 V FT1
SISTEMA / SYSTEMCODICE / CODEFORMAZIONE / TYPEØ ESTERNO / OUTER Ø ±5% (mm)PESO MEDIO / AVERAGE WEIGHT (kg/km)
SIEMENS[3G1,5]ST9,4110
[4G1,5]ST10,3155
[4G2,5]ST11,6210
[4G4]ST13,6315
[4G6]ST15,8460
[4G10]ST19,9650
[4G16]ST24,21030
SIEMENS[4G0,75+(2x0,5)ST]ST
[4G1,5+(2x1)ST]ST12,3235
[4G1,5+(2x1,5)ST]ST12,6248
[4G2,5+(2x1)ST]ST14,3286
[4G2,5+(2x1,5)ST]ST14,6326
[4G4+(2x1)ST]ST15,6365
[4G4+(2x1,5)ST]ST16,8406
[4G6+(2x1,5)ST]ST18,5526
[4G10+(2x1,5)ST]ST21,6735
[4G16+(2x1,5)ST]ST24,51075
BOSCH/REXROTH[4G0,75+2x(2x0,34)ST]ST9,6140
[4G1+2x(2x0,75)ST]ST12,7140
[4G1,5+2x(2x0,75)ST]ST13,0260
[4G2,5+2x(2x0,75)ST]ST14,2320
[4G2,5+2x(2x1)ST]ST14,6330
[4G4+(2x1)ST+(2x1,5)ST]ST16,3330
[4G6+(2x1)ST+(2x1,5)ST]ST18,1552
[4G10+(2x1)ST+(2x1,5)ST]ST21,8810
