Resolver TPE-PUR

STANDARD USE

Multipair twisted shielded pair cable with overall shield for dynamic applications in industrial drag chains, with small external dimensions, high flexibility and outstanding resistance to industrial oils and other chemical and mechanical agents, UL-CSA DESINA approval.

Data sheet
More info

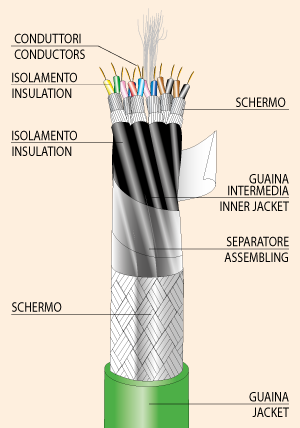

Technical details:

Conductors

Extraflexible tinned copper (Cu-ETP1) UL 1581, VDE 0295 cl.6 ref.

Insulation

Halogen free Polyester (TPE-E) UL 1581 ref.
Colour code: differently coloured

Inner Shield

According to your request the shield on the single twisted pair may be one of the following:
- tinned copper helically wound on the single pair.
Optical coverage: ≥ 85%
- tinned copper braid.
Optical coverage: ≥ 85%

Inner Jacket

Polyolefin on the single shielded twisted pair.
Colour: Black




Assembling

Non woven tape.

Overall Shield

Tinned copper braid.
Optical coverage: ≥ 85%.

Assembling

Non woven tape.

Jacket

Low friction halogen free matt flame retardant Polyurethane, hydrolysis, microbial attack, abrasion, tear, oil resistant UL 1581 ref.
Colour code:
Green Ral 6018 DESINA (other colours on request)

Electrical Conductor Resistance

0,14 mm2: < 150,0 Ohm/Km
0,25 mm2: < 91,0 Ohm/Km
0,34 mm2: < 59,5 Ohm/Km

Operating Voltage

30 V or 300 V



Test Voltage

1500 V

Operating Temperature

Dynamic application: -40°C + 80°C

Bending radius

6 times overall diameter of cable.

Maximun Speed

240 m/min

Maximun Acceleration

30 m/sec2

Flex Life

from 3 to 6 million of motions
(bending radius 10 times overall diameter of cable)

Flame retardant test

CEI 20-35/1-2, EN 60332-1-2, IEC 60332-1-2, UL 1581 cable flame test, FT1 test

Non-Halogen Verification

< 0,5 % (CEI 20-37/2-1, CEI EN 50267-2-1, IEC 60754-1)


UL-CSA Approval (E235078)

AWM Style 20233 80°C 300 V - CSA I/II A/B 80°C 300 V FT1
AWM Style 20549 80°C 300 V - CSA I/II A/B 80°C 300 V FT1
AWM Style 20236 80°C 30 V – CSA I/II A/B 80°C 30 V FT1
AWM Style 20554 80°C 30 V - CSA I/II A/B 80°C 30 V FT1
SCHERMATURA / SHIELDCODICE / CODEFORMAZIONE / TYPEØ ESTERNO / OUTER Ø ±5% (mm)PESO MEDIO / AVERAGE WEIGHT (kg/km)
SCHERMO A FASCIO SULLE SINGOLE COPPIE
[3x(2x0,14)SF-R]ST9,0107
[4x(2x0,14)SF-R]ST9,6122
[5x(2x0,14)SF-R]ST10,6151
[6x(2x0,14)SF-R]ST11,8185
[9x(2x0,14)SF-R]ST14,5275
[3x(2x0,25)SF-R]ST9,8108
[4x(2x0,25)SF-R]ST10,7144
[5x(2x0,25)SF-R]ST11,9180
[6x(2x0,25)SF-R]ST12,9218
[9x(2x0,25)SF-R]ST16,5330
[3x(2x0,34)SF-R]ST10,4126
[4x(2x0,34)SF-R]ST11,1170
[5x(2x0,34)SF-R]ST12,5215
[6x(2x0,34)SF-R]ST13,5255
[9x(2x0,34)SF-R]ST17,6385
SCHERMO A TRECCIA SULLE SINGOLE COPPIE
[3x(2x0,14)ST-R]ST9,6121
[4x(2x0,14)ST-R]ST10,5138
[5x(2x0,14)ST-R]ST11,4169
[6x(2x0,14)ST-R]ST12,5207
[9x(2x0,14)ST-R]ST15,4305
[3x(2x0,25)ST-R]ST10,4114
[4x(2x0,25)ST-R]ST11,5154
[5x(2x0,25)ST-R]ST13,0195
[6x(2x0,25)ST-R]ST14,0230
[9x(2x0,25)ST-R]ST17,5345
[3x(2x0,34)ST-R]ST11,0132
[4x(2x0,34)ST-R]ST12,0179
[5x(2x0,34)ST-R]ST13,5233
[6x(2x0,34)ST-R]ST14,4275
[9x(2x0,34)ST-R]ST18,5411
